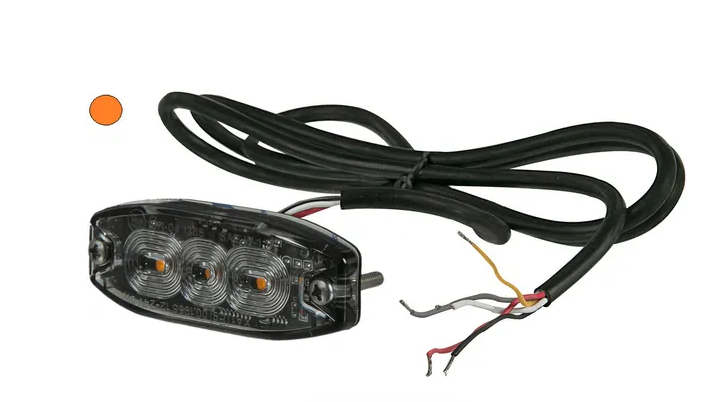

Flashing warning light, amber, 3 LED's
Description
Part number
LA20073
EAN8719493038088Unit
Each
Properties
- Operating voltage: 12–24 VDC
- Average energy consumption: 1.2 A at 12 VDC/0.6 A at 24 VDC
- ECE R65 Approved Class I (double flash)
- EMC approval to R10.04
- 12 V
- 24 V
10-30 V
Bulbs technology
LED
Shape
Rectangular
Function
Flash
Power
6.7 W
Width
82 mm
Height
30 mm
Length (depth)
9 mm
Mounting position
- Front
- Rear
- Bolt on
- Self-adhesive
Orange
Application
- Tractor
- Trailer
- Truck
- Car
- Construction vehicle
- Road services
Universal
Plug type
Free conductor end
Cable length
1.5 m
ECE standard
- R65
- R10
3
Mounting holes distance
71 mm
Number of light patterns/types
19
Insulation class
67
Extra info
- Low profile
- IP 67
- Multi-flash function
- Switch functionality by means of a wire (yellow with red accent).
- Memory
- Synchronisation possible through yellow wire with multiple units
