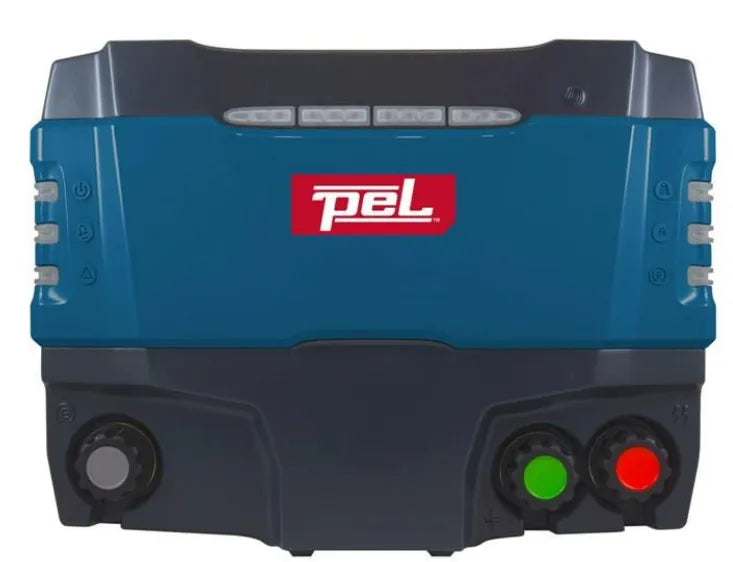

PEL - A15Xi Mains Energiser

The PEL A15Xi provides the power previously attained from large energiser whilst complying with
the latest EN 60335 2 76 standard.

Key Features:

• 15 Joule Output Energy.
• 2 Year Warranty
• Compatible with PEL Remote (Sold Separately)
• Indicates when a medium or heavy load is seen on the fence.
• Medium load LED illuminates orange when the fence load is 100 Ω or less.
• Medium load and heavy load LEDs illuminate orange when the fence load is 50 Ω or less.
• Notifies farmer when the fence needs to be checked for high vegetation or shorts on the fence.

Specifications:

• Earth monitor LED illuminates orange when the earth voltage is above 800 V.
• Earth monitor terminal should be connected in the same way as 415i. Earth rod for earth monitor needs to be 10m away from A15Xi’s earth system.
• Notifies farmer when the earth system needs to be improved to allow for adequate shocks from the fence.
